Indirect, stable high-temperature heating
Drying, hot pressing, laminating, reactor and vessel jackets, heat exchangers, asphalt and other closed-loop process heating duties.
Process heat, specified correctly
Steam Boilers and Thermal Oil Heater Systems for Process Plants
30 years of professional manufacturing experience · One of China’s leading industrial boiler manufacturers
Focused on quality, system engineering and equipment reliability, JIELI develops complete steam boiler and thermal oil heater systems for demanding industrial plants.
Multi-fuel combustion systemsNatural gas · fuel oil · biomass · coal

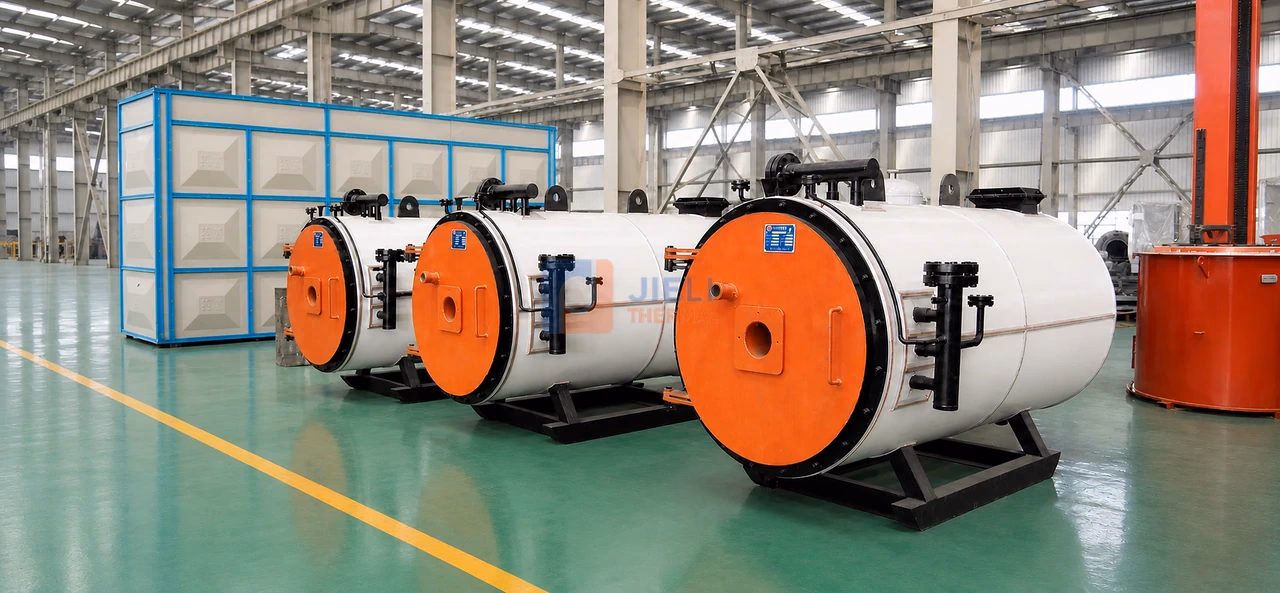

Thermal oil heater 0.6–30 MWUp to 320°C
Steam boiler 1–35 t/hUp to 2.5 MPa
30 years of professional boiler manufacturing and system integrationA leading Chinese supplier working to the highest quality standards, backed by disciplined engineering and real export-project evidence.
Verify manufacturing capability
Start with the process
Choose the heating medium before choosing the boiler
Thermal oil and steam solve different process problems. A correct first decision reduces operating risk, unnecessary pressure and lifecycle cost.
The fundamental difference
Thermal oil transfers heat without a phase change; steam transfers heat through vapor generation and condensation.
Most thermal oil systems circulate an organic heat-transfer fluid in the liquid phase. Because the fluid does not have to boil to carry useful process heat, the system can provide high-temperature heat without generating steam pressure. It also avoids boiler-water testing, deoxygenation, demineralization and condensate recovery because no water-side condensate is produced.
Steam contact and steam-side heating
Direct steam injection or contact heating, general process heating, reactor jackets, sterilization, humidification, washing and other duties that specifically require steam.
High-temperature, low-pressure process heat
Thermal Oil Heater Systems
For plywood presses, asphalt tanks, chemical reactors, textile stenters and other duties requiring stable high-temperature heat without high steam pressure.
Compare thermal fluid heater options
Steam for process, sterilization and humidification
Industrial Steam Boiler
Fire-tube, water-tube and biomass systems selected by steam load, pressure, fuel, water quality and condensate-return conditions.
Compare industrial steam boiler optionsApplication-led engineering
Selection logic matched to the plant, not just the nameplate
Plywood & wood panels
Thermal oil supply for hot presses, dryers and continuous production lines, with return-temperature and pump-flow checks.
Bitumen & asphalt
Tank, pipeline and mixing-plant heating sized for cold starts, ambient conditions and the required product temperature.
Chemical processing
Stable jacket or coil heating for reactors, distillation and process vessels, with temperature-control and safety-loop review.
Food & edible oils
Steam and thermal fluid duties for cooking, refining, drying and cleaning, with water treatment and heat recovery considered.
Fuel and system scope
One duty, several technically valid configurations
Fuel availability, emissions limits, turndown, automation level and local service capability can change the best configuration. We compare the complete operating system rather than isolating the boiler body.
- Boiler or heater body and combustion equipment
- Pumps, expansion/deaeration, water treatment and tanks
- Heat recovery, controls, interlocks and instrumentation
- Site data, layout constraints and export delivery scope
Quick engineering reference
Convert thermal duty before shortlisting equipment
Regional specifications may express the same heat duty in kcal/h, kW, MW or MMBtu/h. Use this quick comparison for early planning; final selection still requires process temperatures, efficiency, fuel and operating profile.
Reference: 1,000,000 kcal/h ≈ 1.163 MW ≈ 3.968 MMBtu/h.
Heat-duty converter
→
Project proof
Specification must survive real installation conditions
This 5,000,000 kcal/h gas-fired thermal oil heater project in South Korea shows the system-level view: heater, combustion, circulation, piping interfaces, controls and site layout are coordinated as one operating package.
- Heat duty5,000,000 kcal/h
- Equivalent outputApprox. 5.81 MW
- Heating mediumThermal fluid
- Project typeIndustrial battery plant
For company history, manufacturing evidence and the full project gallery, visit the JIELI THERMAL manufacturing website.
System-integration capability
Controls and emissions equipment complete the operating package
Boiler performance depends on the control architecture and project-specific flue-gas or waste-gas treatment scope—not only the pressure vessel or heater body.
Engineering selection request
Send five parameters. Receive a useful shortlist.
Required duty, outlet temperature or steam pressure, fuel, industry/process and project country.
